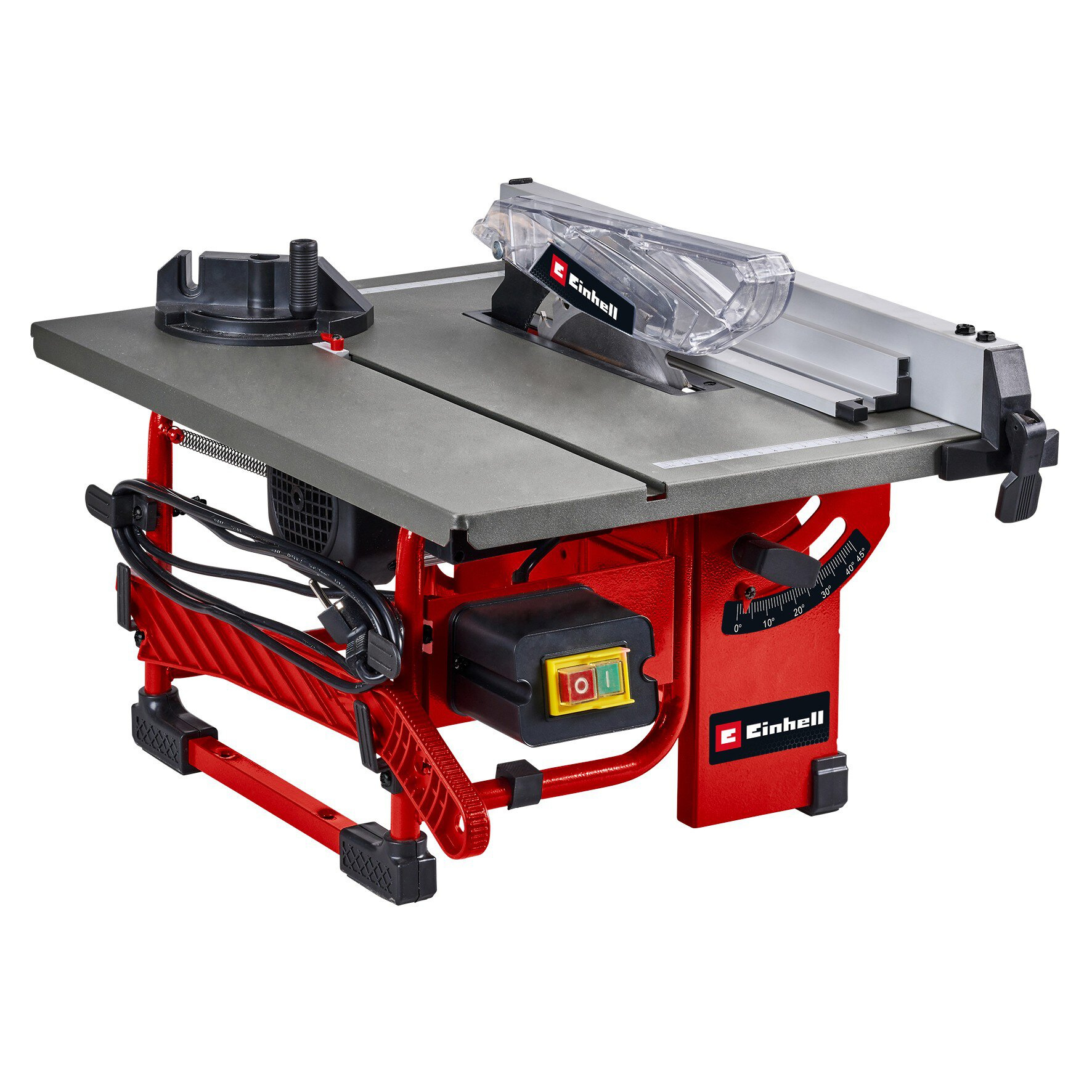

Stolní kotoučová pila TC-TS 8 I
Popis a parametry
Stolní kotoučová pila TC-TS 8 I

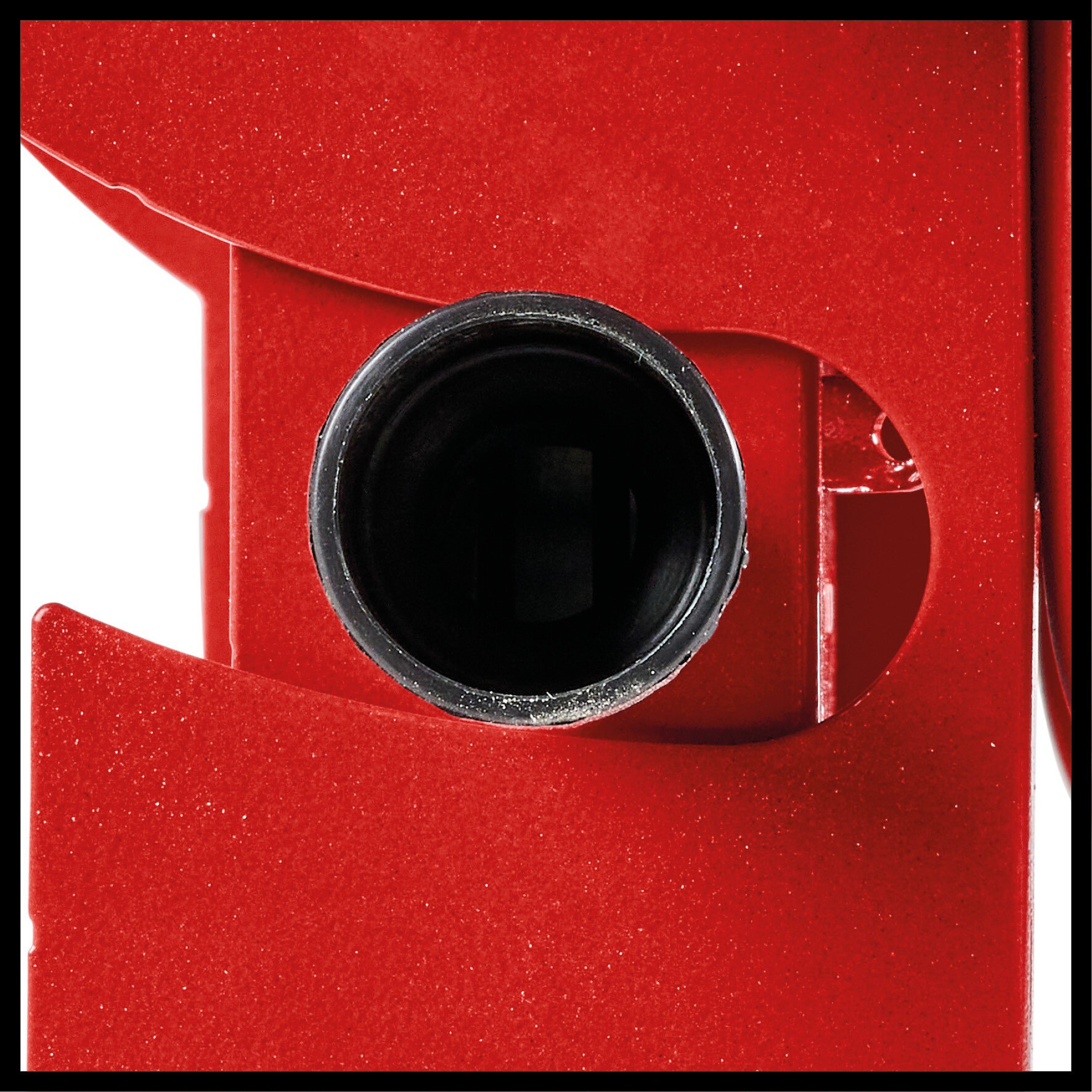

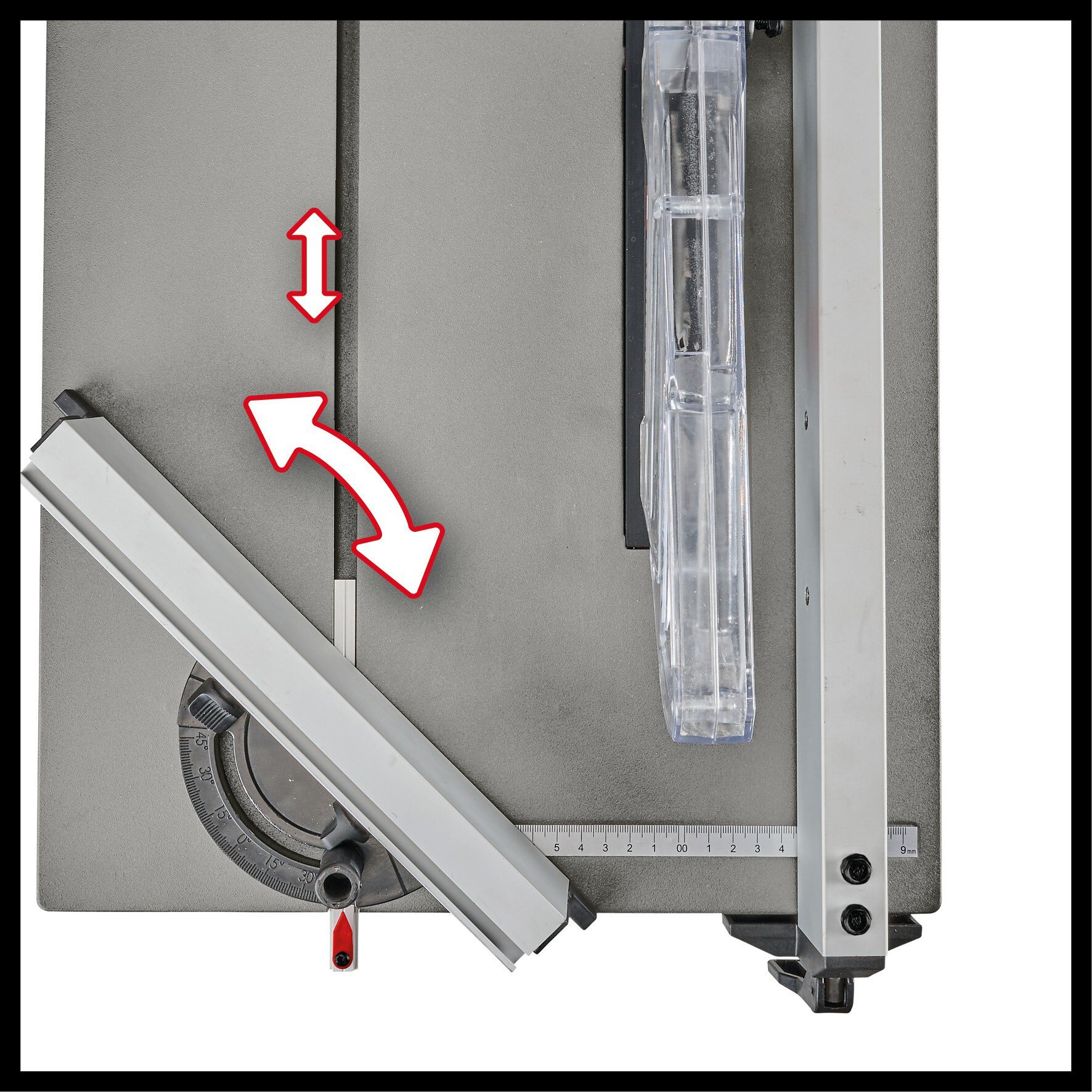

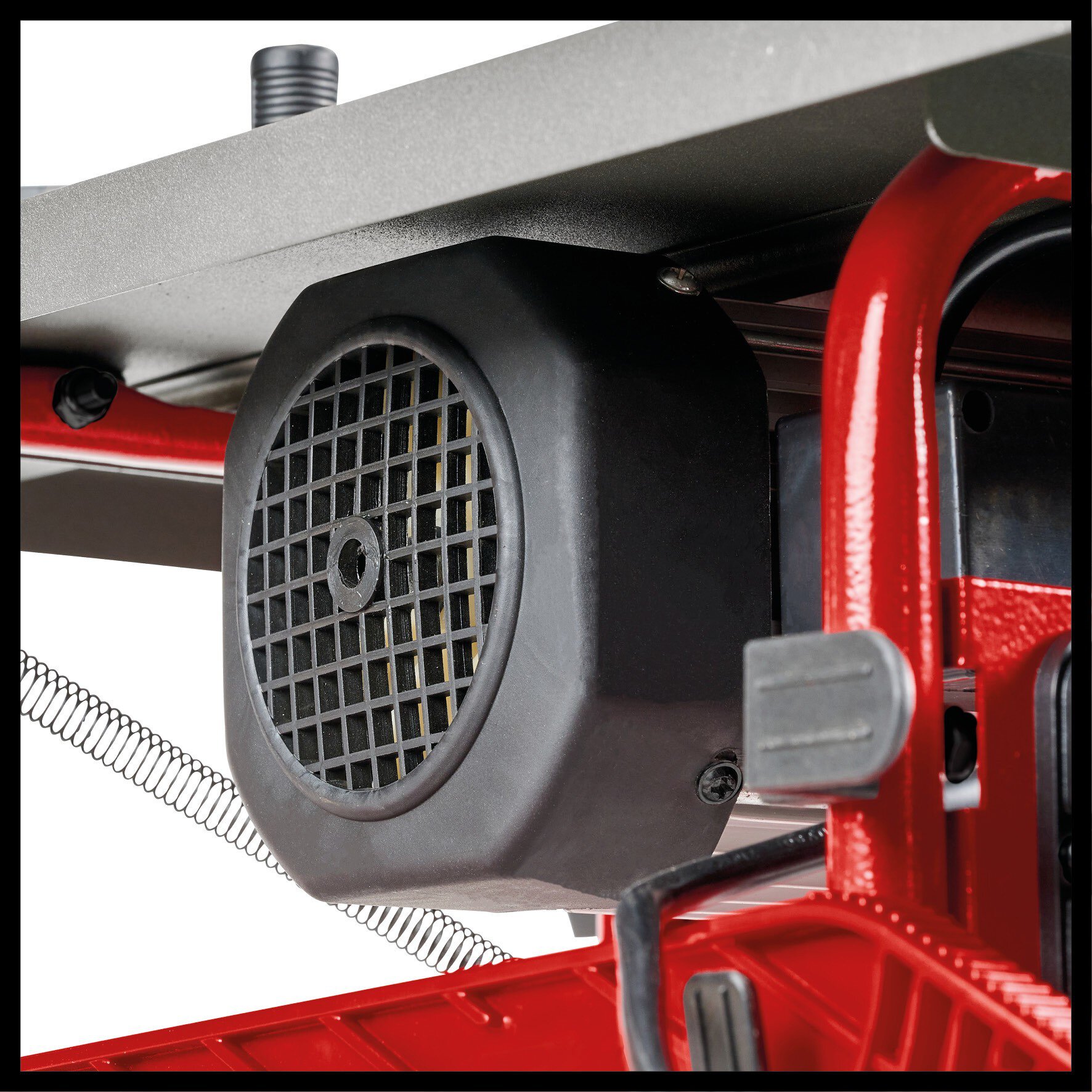

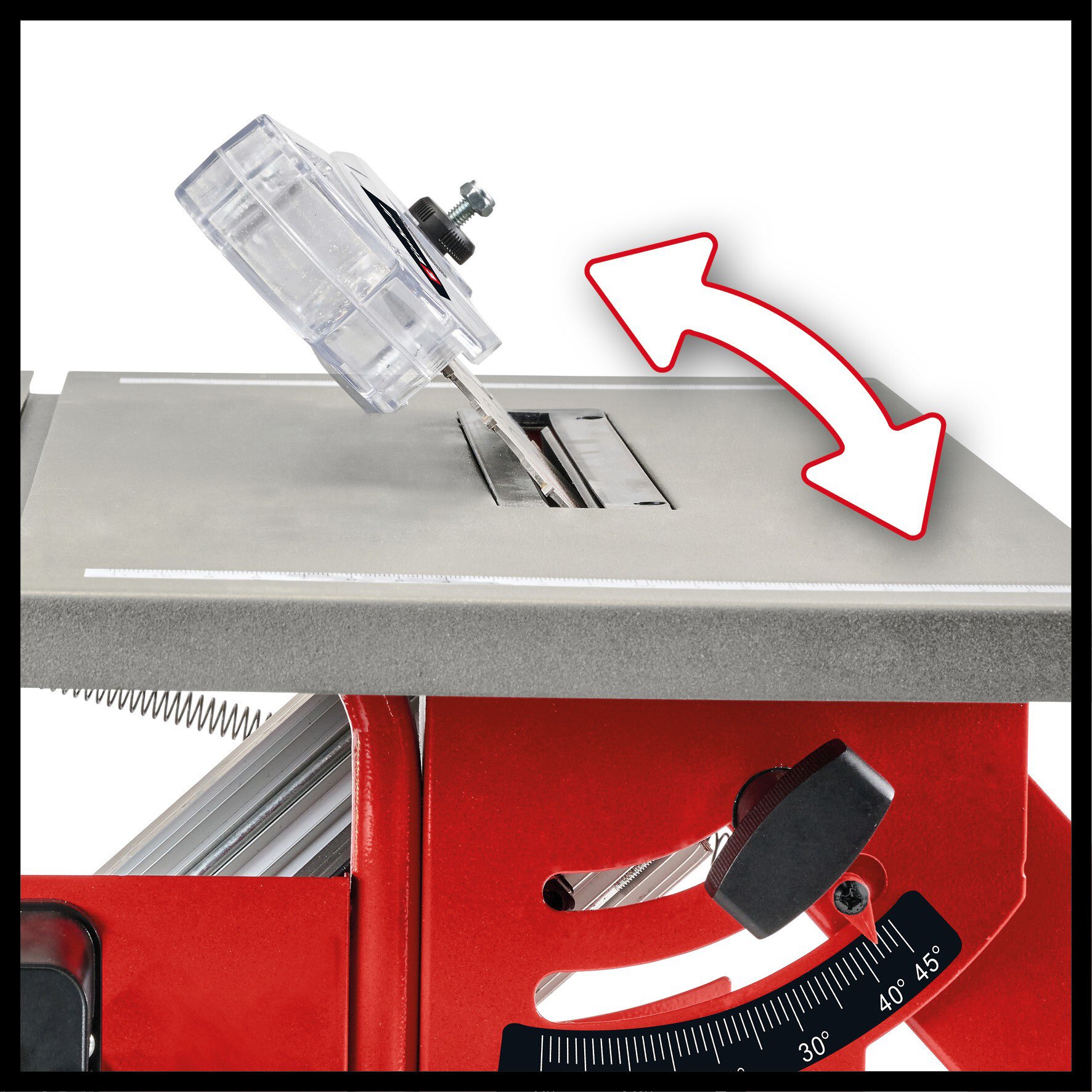

The Einhell table saw TC-TS 8 I is a compact, powerful tool for working with wood, fibreboard and many other materials. The low-maintenance, smooth-running, yet at the same time powerful induction motor provides the required power, while the robust tubular frame construction and the steel worktable provide the necessary stability. The blade can be tilted to the left (up to 45°), which in combination with the angle stop (+/- 45°) makes precise mitre cuts possible. The table saw is equipped with a rip fence with clamps on both sides. To keep the work area clean, a chip extraction port is integrated into the housing. The cable can be stored safely and conveniently on the integrated cable holder. The carbide-tipped saw blade delivers powerful and clean cutting performance. The specially designed bracket means the push stick required for safe working will always be within reach.
ParametryPorovnání
Šířka
410 mm
Výkon
500 w
výška
365 mm
Délka
530 mm
Síťová přípojka
230-240 v
Hrubá hmotnost jednoho balení
14.15 kg
Hmotnost výrobku
10.23 kg
Volnoběžné otáčky
2950 min^-1
Max. výkon (S6 | S6%)
800 w | 15 %
Pilový list
200 mm x 16 mm
Rozsah výkyvu pilového listu
45 °
Max. výška řezu při 45 °
27 mm
Max. výška řezu při 90 °
45 mm
Průměr přípojky pro odsávání
36 mm
Velikost pracovního stolu
505 mm x 373 mm
Počet zubů pily
24 pieces
Stolní kotoučová pila TC-TS 8 I
