Kompresor TC-AC 270/50/8
Popis a parametry

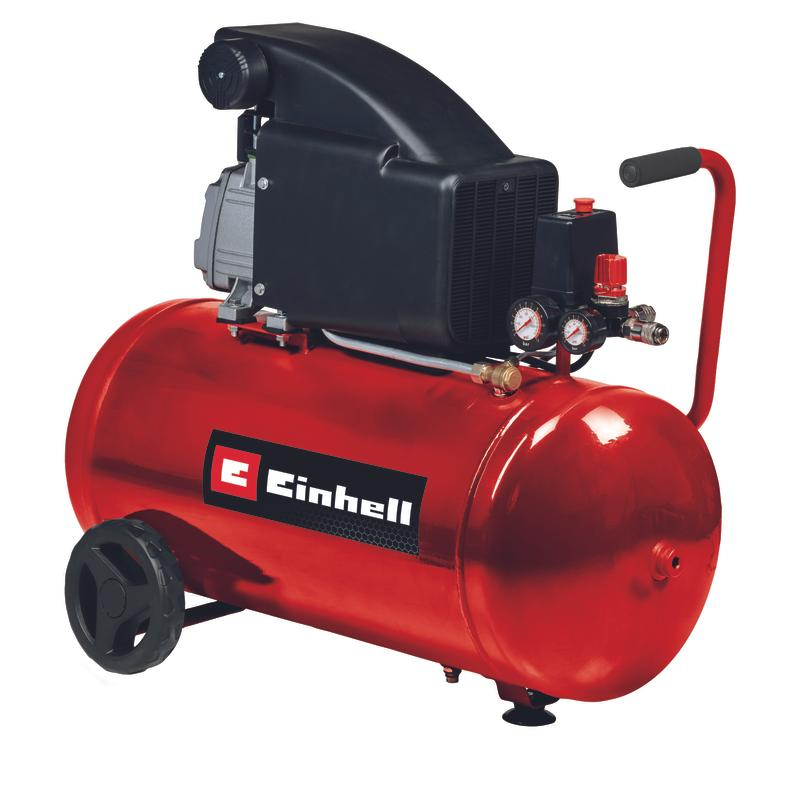

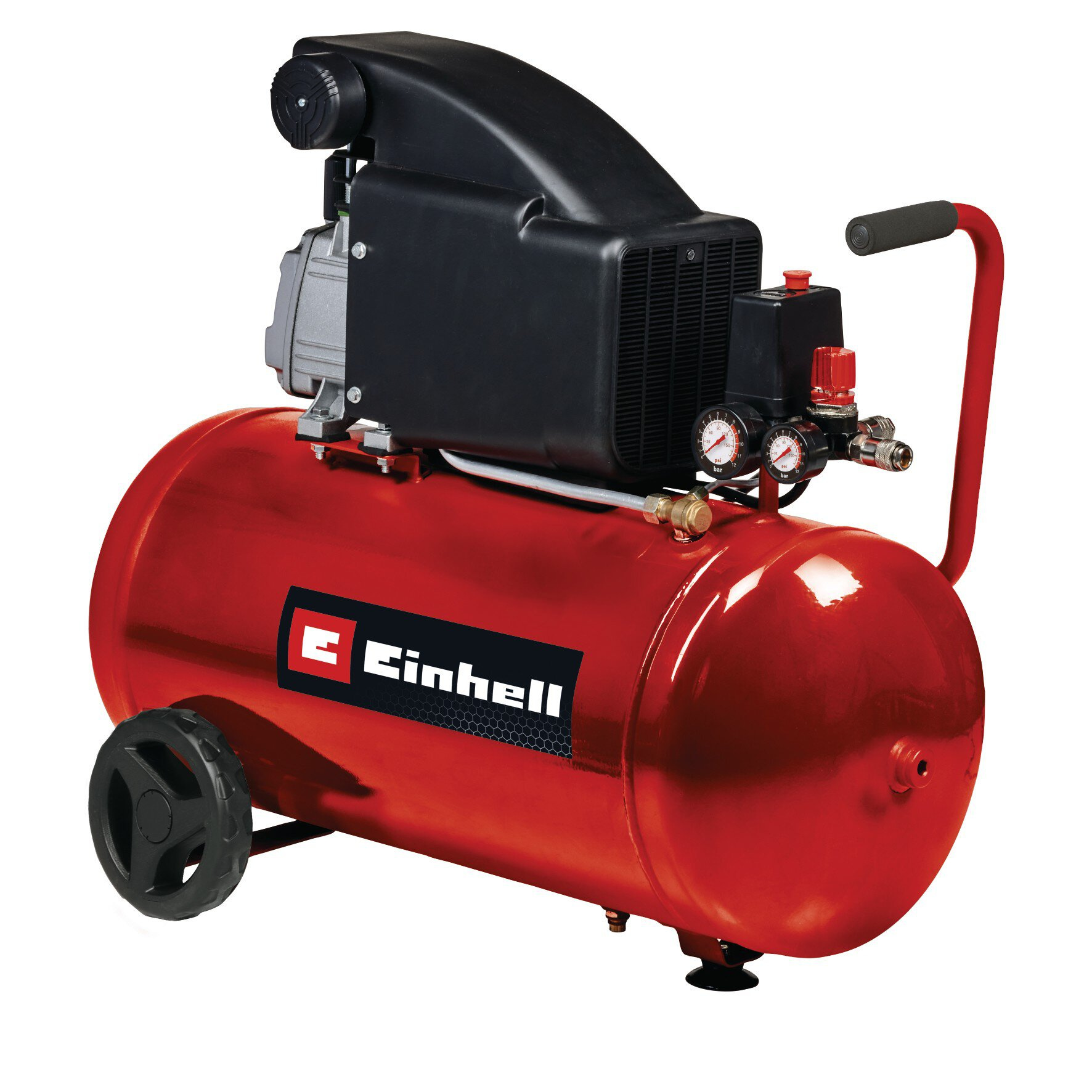

Kompresor TC-AC 270/50/8

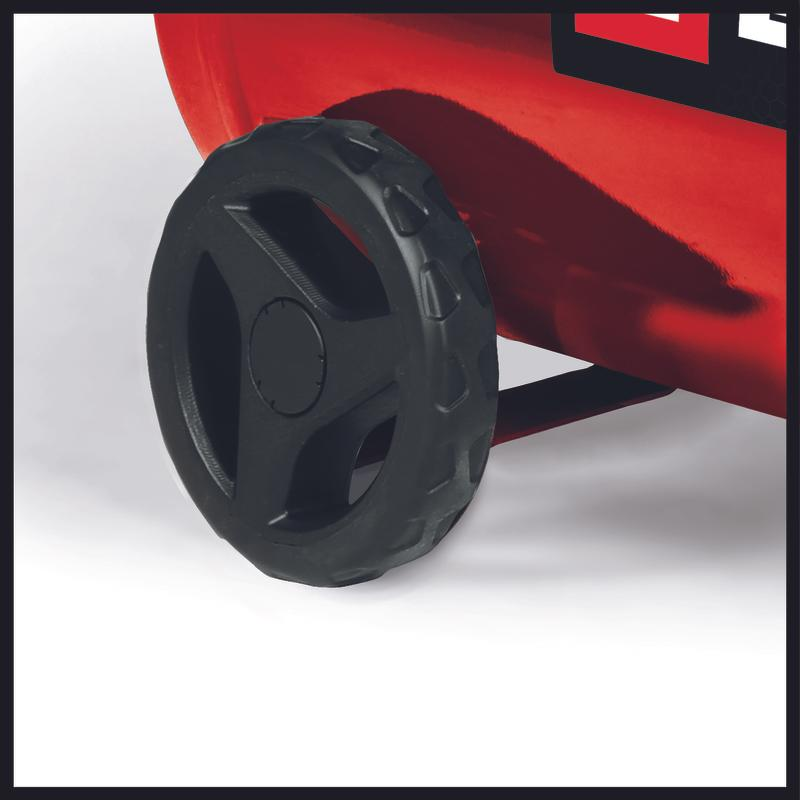

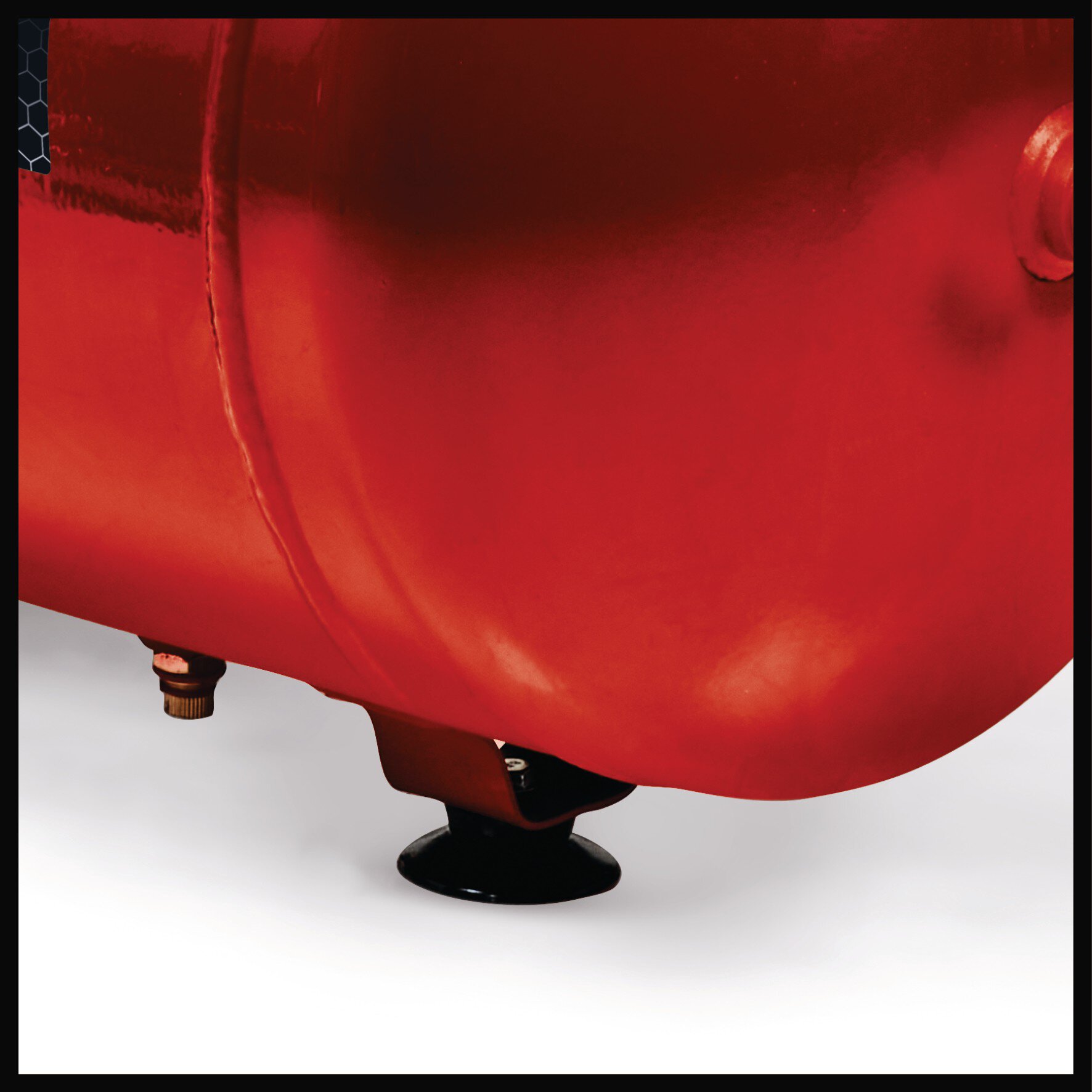

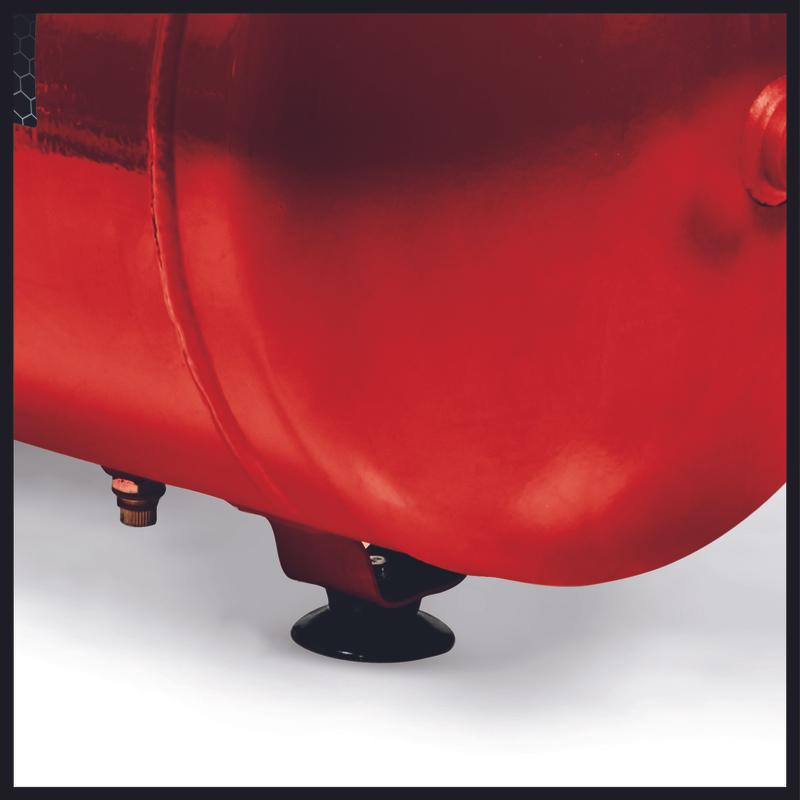

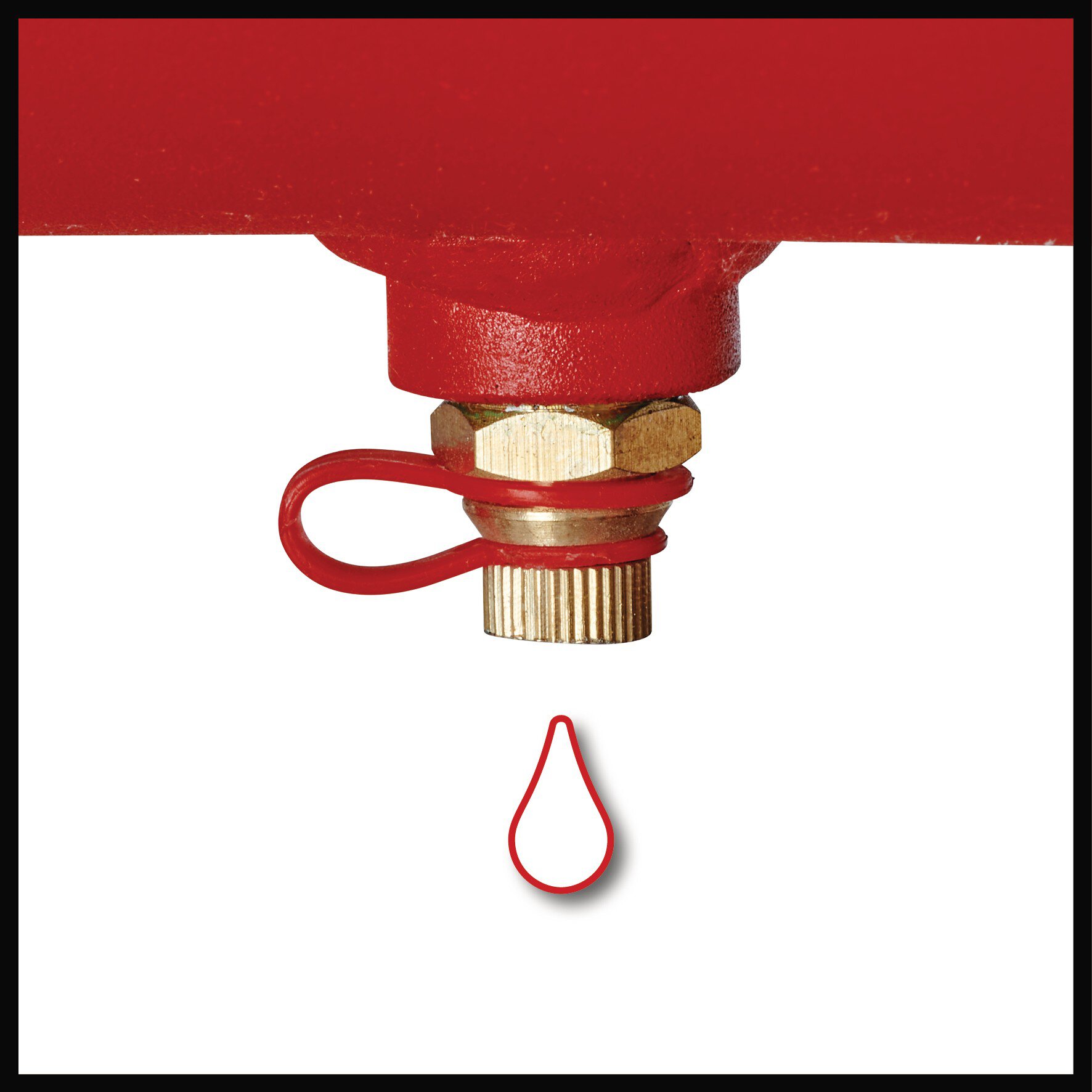

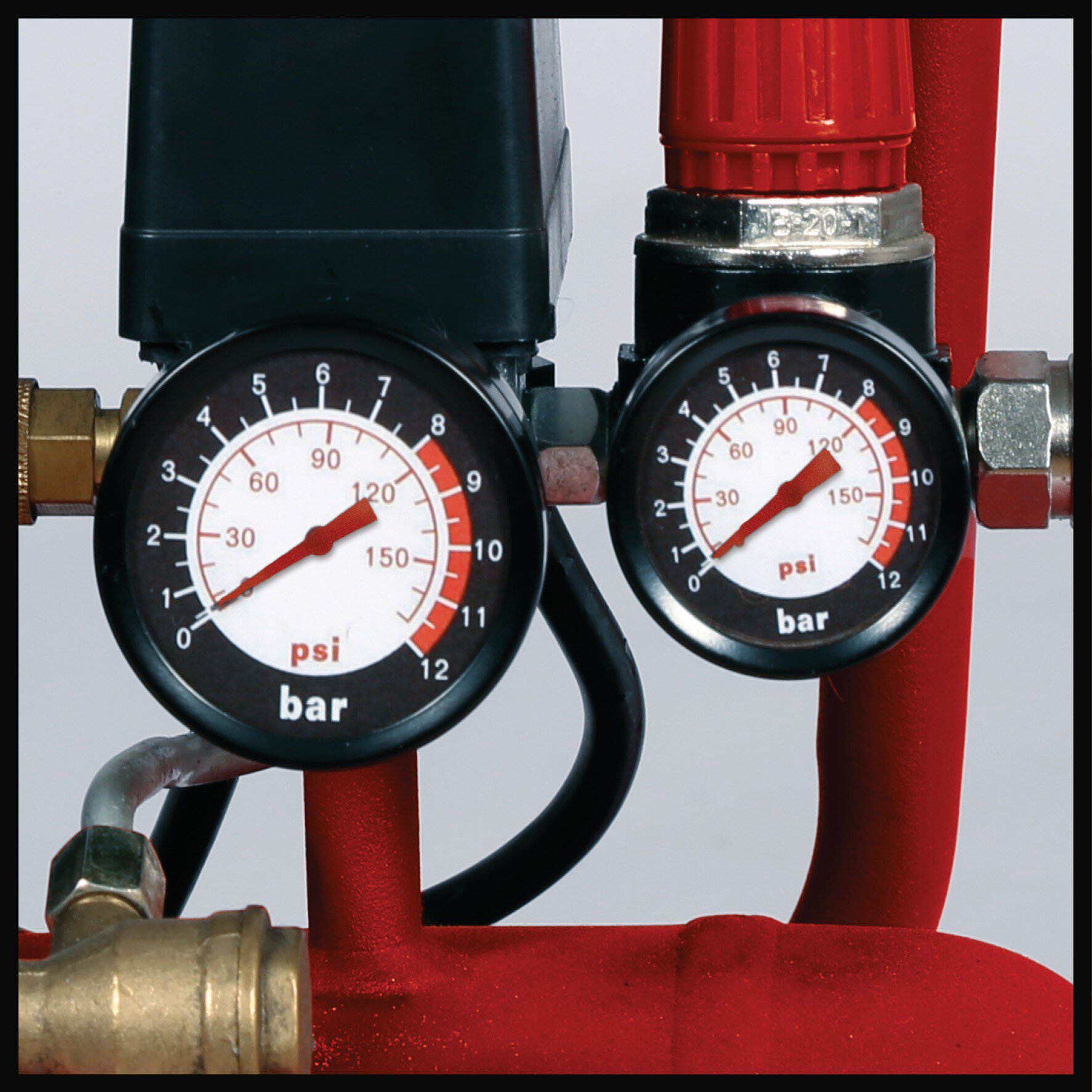

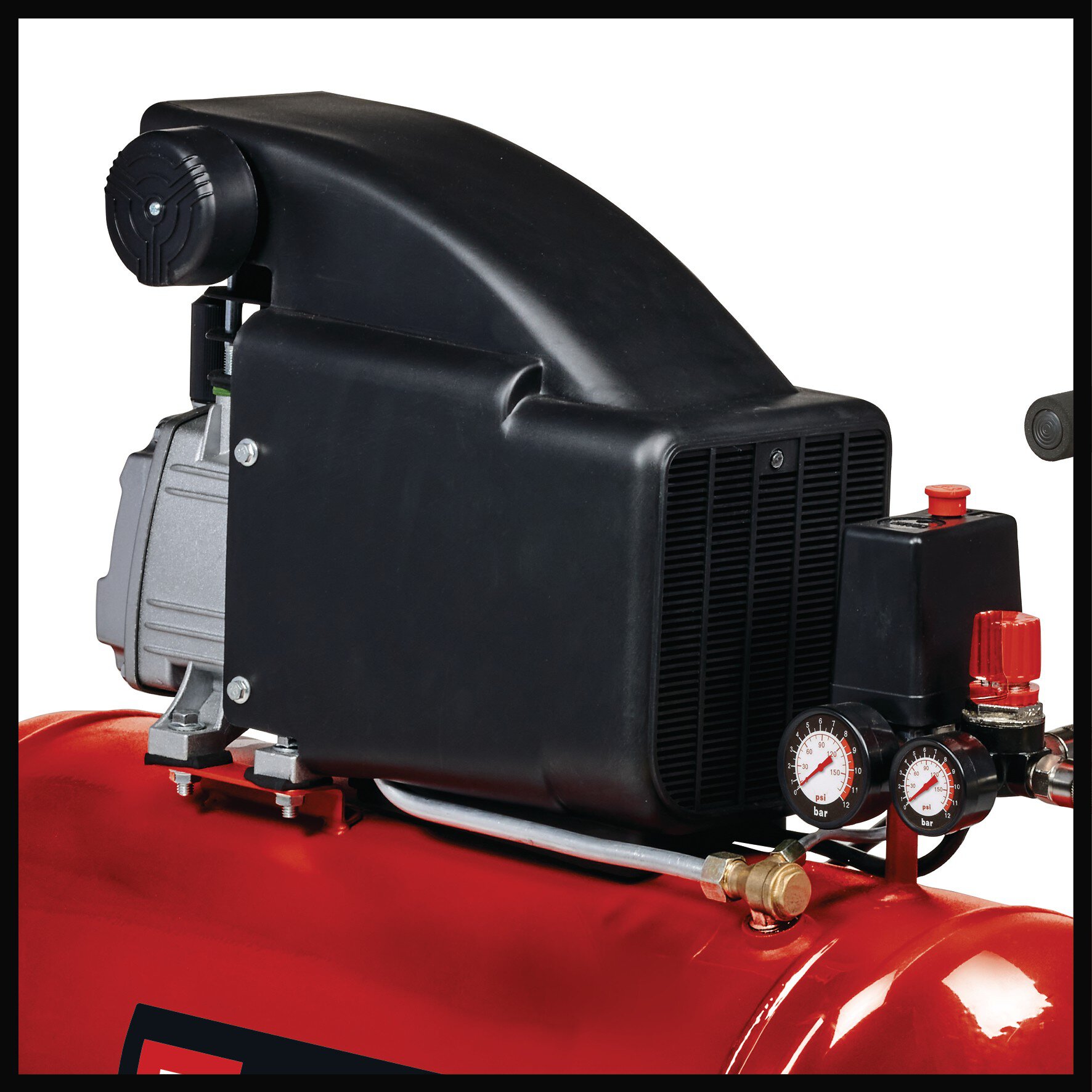

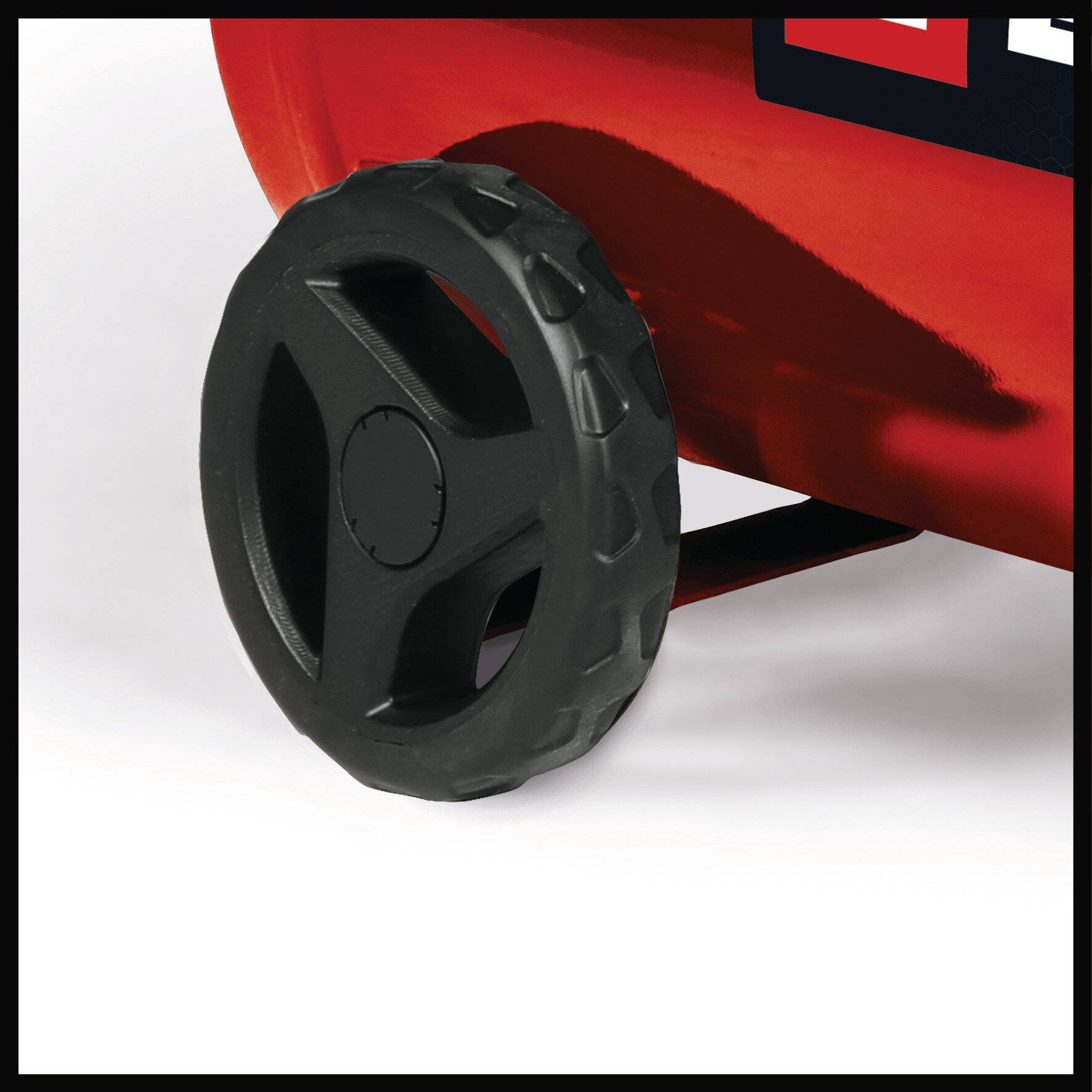

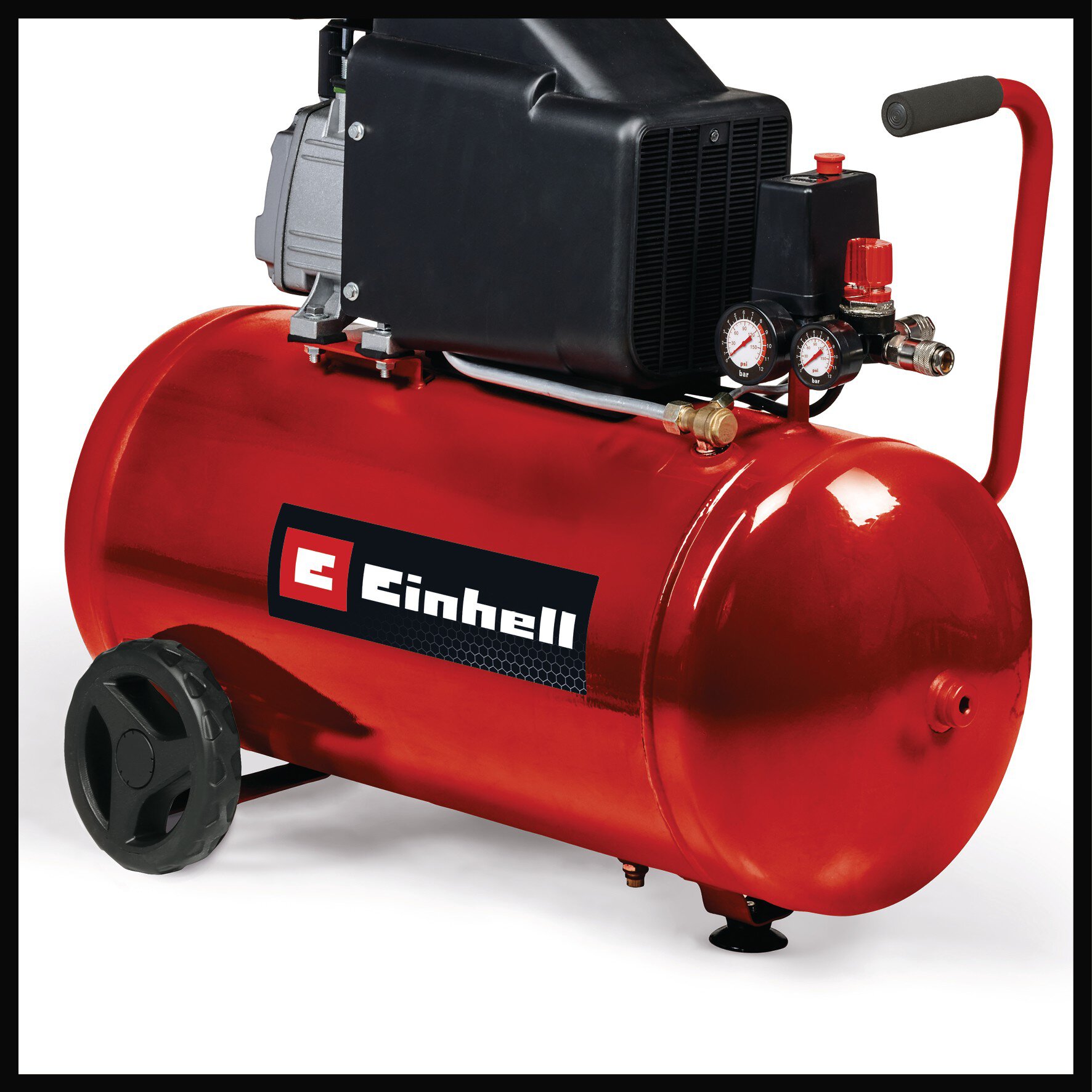

The TC-AC 270/50/8 is a versatile compressor with an operating pressure of 8 bar and is perfectly suited to a wide range of compressed air work. The regulated working pressure can be set precisely via the pressure reducer and is displayed via the large pressure gauge. The unregulated boiler pressure can also be read on a pressure gauge. Various different compressed air tools can be connected quickly and without tools thanks to quick coupling. The 50-litre tank offers sufficient air reserves to handle time-consuming and long-lasting work without any problems. The oil lubrication of the pump always ensures the longevity of the compressor. A non-return and safety valves ensure the necessary safety during operation. The condensed water can be easily and cleanly drained from the boiler by means of a drainage screw. The vibration-damping stand prevents vibrations, ensures a secure standing and reduces noise. The compressor is quickly ready for use and easy to transport thanks to the practical transport handle and the two rubberised wheels. The robust boiler is covered by a 10-year guarantee against rust penetration.
ParametryPorovnání
Šířka
330 mm
výška
660 mm
Délka
740 mm
Síťová přípojka
220-240 v | 50 hz
Hrubá hmotnost jednoho balení
34.05 kg
Hmotnost výrobku
30.35 kg
Hladina akustického tlaku Lpa
75 db (a)
Max. výkon motoru
1800 w 2.5 ps
Otáčky motoru
2850 min^-1
Otáčky čerpadla
2850 min^-1
Sací kapacita
270 l/min
Odevzdaný výkon při 0 bar
140 l/min
Odevzdaný výkon při 4 bar
125 l/min
Odevzdaný výkon při 7 bar
100 l/min
Max. provozní tlak
8 bar
Objem nádrže
50 l
Počet válců
1 pieces
Hladina akustického výkonu (LWA)
97 db (a)
